S&S 6.7 Powerstroke DCR Conversion

Replace the failure-prone Bosch CP4.2 high-pressure fuel pump on your 6.7L Power Stroke with the S&S Diesel Motorsport DCR conversion. A CP4 failure can send metal through the injectors, rails, and lines and turn into a $10,000–$15,000 fuel-system repair. This kit removes the CP4 and installs a two-piston Stanadyne DCR pump co-developed by S&S and PurePower Technologies.

The Ford-specific DCR is built to follow the CP4 output curve, so the stock ECU does not need a tune, flash, or calibration change. It is a direct-fit conversion with OE-style hard lines, supply and return hose, adapter hardware, and install instructions.

Key specs

• Part number: 6.7F-DCR-1
• Fits 2011–2026 Ford F-250, F-350, F-450, F-550, F-650, and F-750 with the 6.7L Power Stroke (confirm F-600 by year with S&S)
• No ECU calibration required
• Displacement: 1,250 mm³ per revolution, about 25% more than a CP4.2

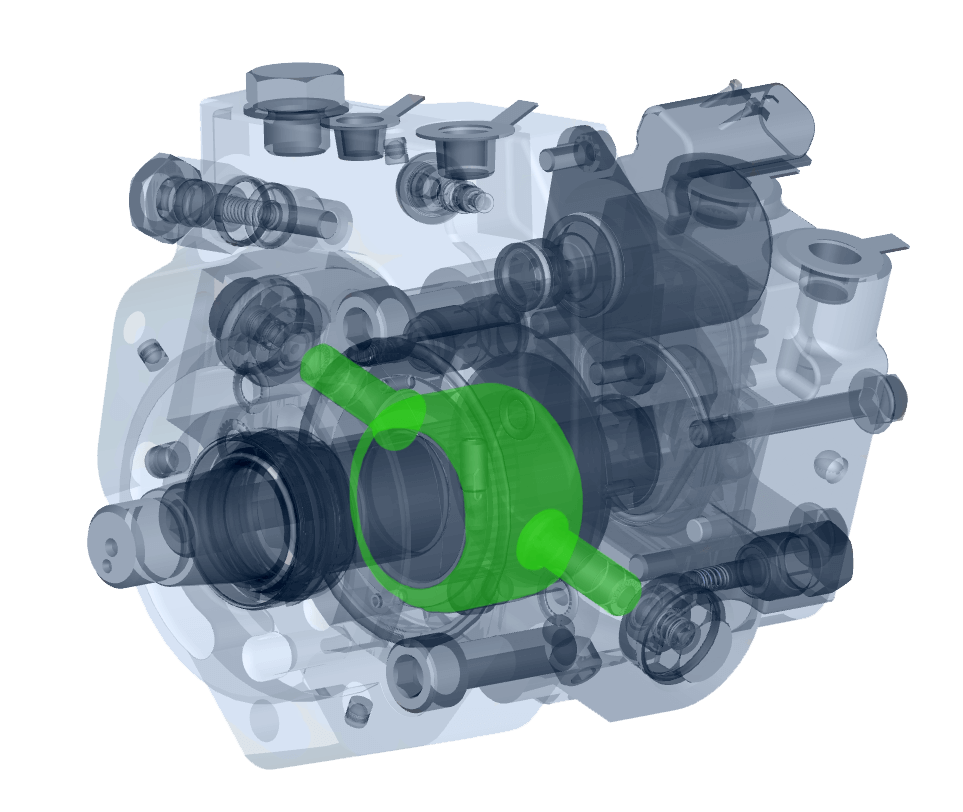

• Two-piston DCR with patented eccentric drive, pressure-lubricated cam and bushings
• Corrosion-resistant inlet metering valve (IMV / FCA)
• Biofuel and low-lubricity fuel compatible
• Low hydraulic and acoustic noise, fast response
• CARB Executive Order D-756-7 (50-state legal)
• SEMA Certified Emissions Compliant SC-SDM01-0034
• Two-year, unlimited-mileage manufacturer warranty (warranty follows the part; labor and shipping are not covered)
• No core charge

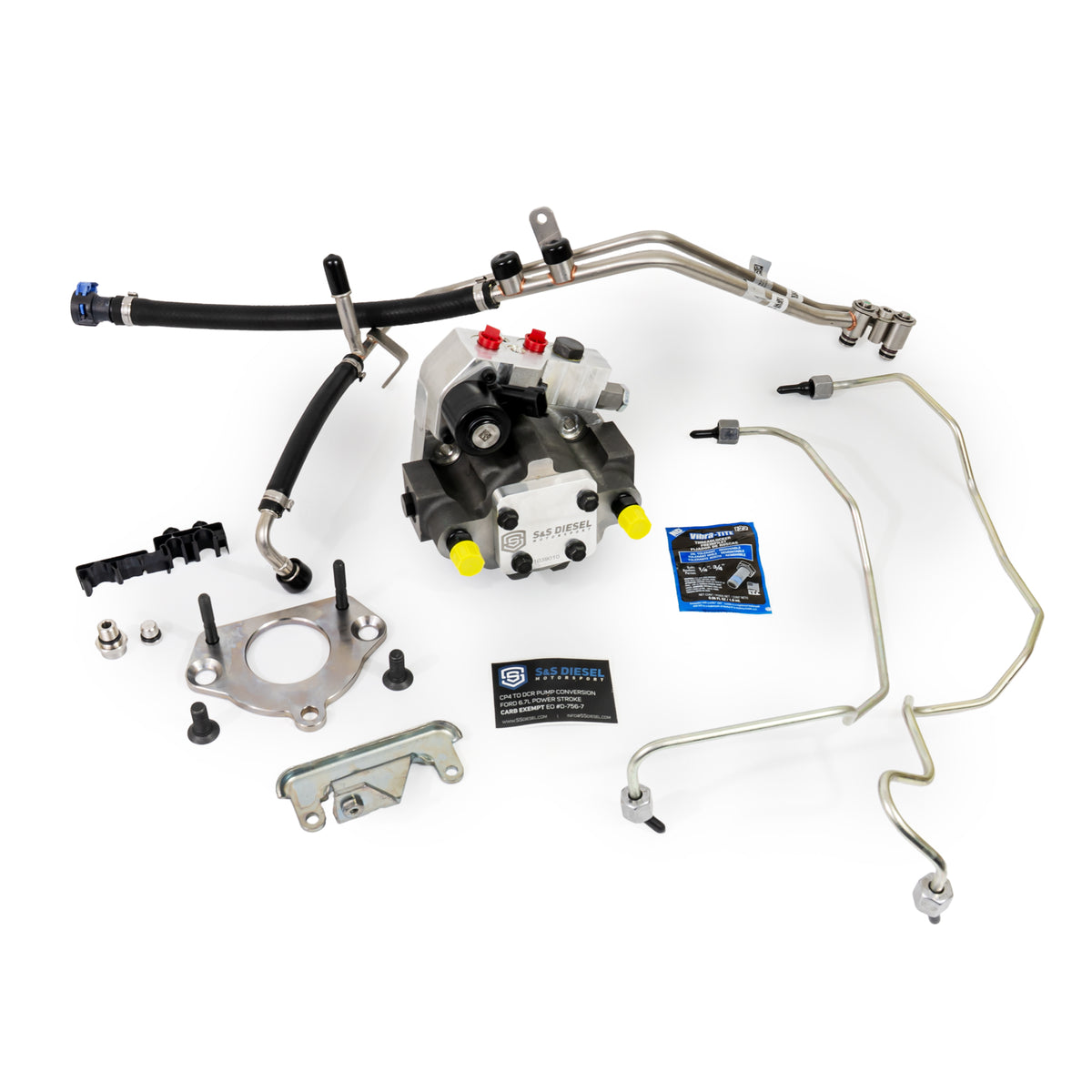

What’s in the kit

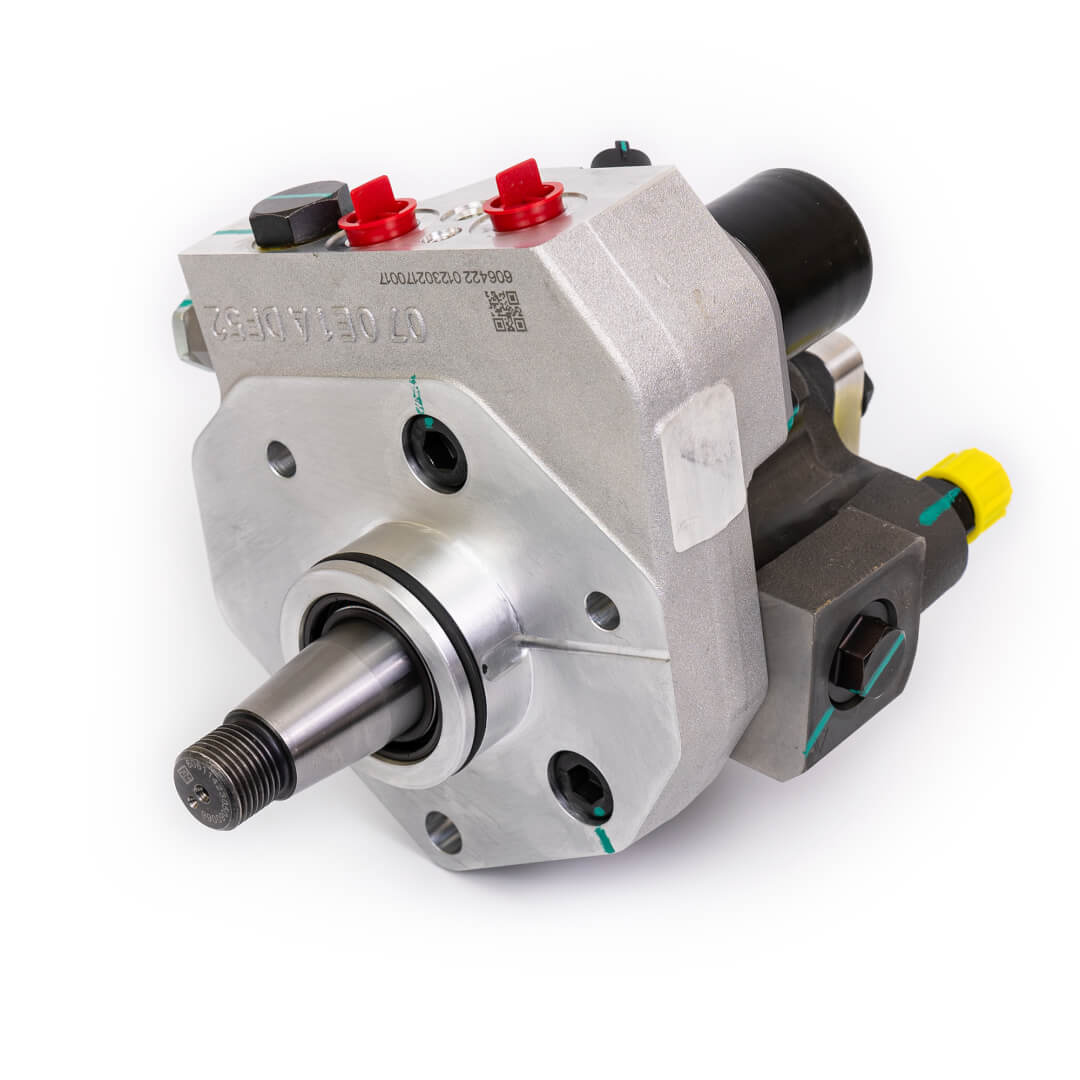

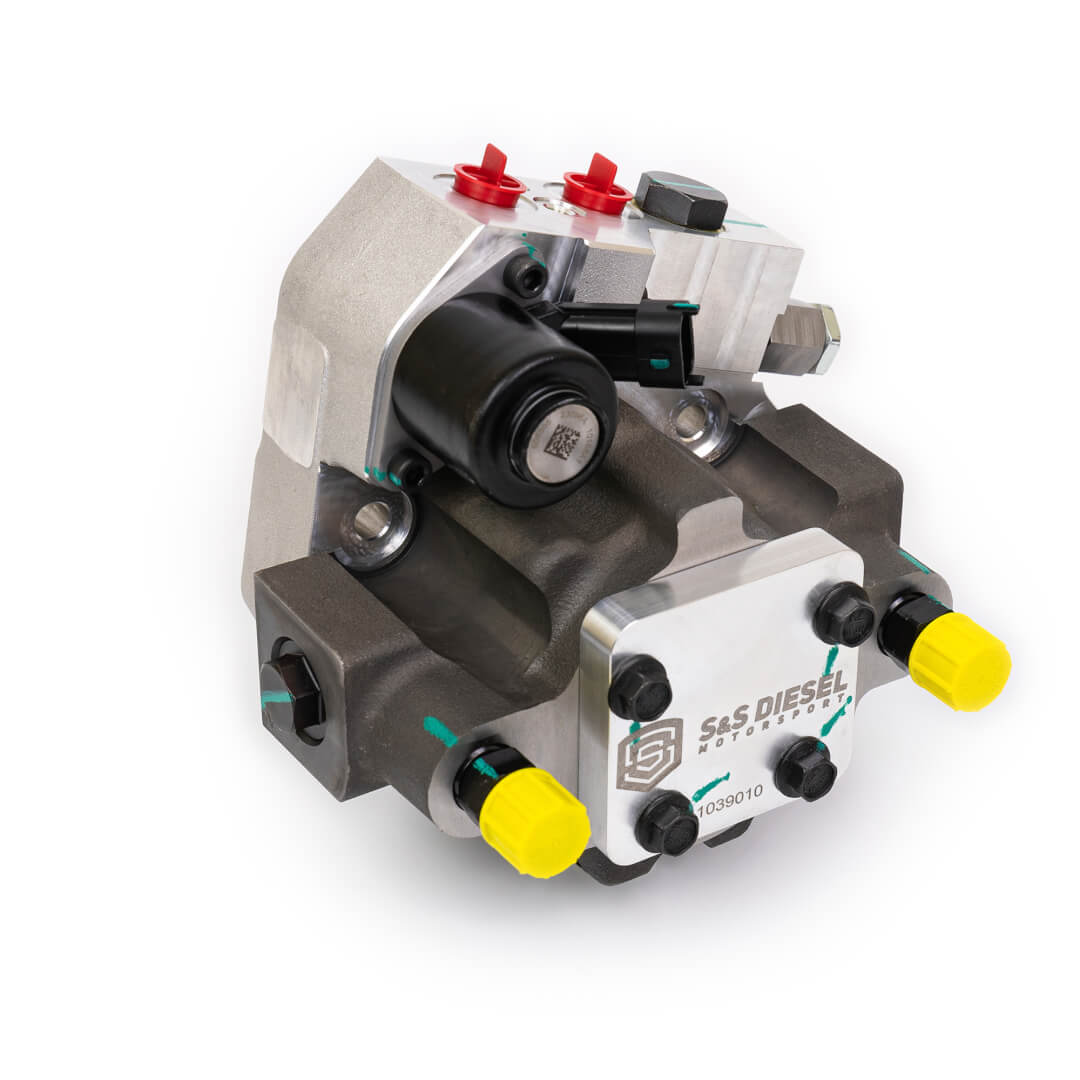

• New S&S / PurePower DCR high-pressure pump (not a reman)
• Driver- and passenger-side high-pressure fuel lines
• Low-pressure supply and return line assembly
• Adapter plate and mounting hardware
• Installation instructions

Install notes

• Plan on about 6–12 hours. A shop install is commonly quoted around 8 hours.
• 2011–2016 trucks disturb a one-time-use vacuum pump gasket. Order S&S 6.7F-VAC-GASKET (MAHLE B32630 equivalent) before you start. Other pump gaskets can usually be reused if they are not damaged; a full mounting gasket kit is optional.
• Do not leave a CP4 Disaster Prevention Kit (DPK) installed. The DPK is for the CP4 only and will not work with the DCR.
• This kit replaces a working or failed pump. It does not include injectors, rails, or a contamination cleanup kit. If the CP4 has already failed and contaminated the system, those parts still have to be replaced.
• Pump timing matters for harmonics. Follow the S&S instructions.

Warranty and compliance

Manufacturer warranty is two years and unlimited miles from the sale date. Damage from improper install, water, or debris is not covered. California Proposition 65: this product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov
